Part # STI-4 x 8

15" Laminated Tail Wheel 4 x 8 x 15" - 4 Bolt Pattern

Size 15" ± ¼" (381mm  ± 6mm)
Width 4" ± ¼" (101mm  ± 6)
Center Hub Hole  3.55" (90mm)
Hub Bolt Pattern  4 on 5"
Weight Lbs 24 Lbs (10 kgs)


Fits : Like Bush Hog, Woods, Land Pride, Kubota, Rhino, Mahindra, King Kutter, Hardee and others. Flat/Flat Free -Not for Highway use (Available in all kind of Sizes and Colors)


Part # STI-6 x 95

21" Laminated Tail Wheel 6 x 9 x 21" - 5 Bolt Pattern

Size 21"± ¼" (533mm±6mm)
Width 5.50"±¼" (140mm ± 6mm)
Center Hub Hole  3.50"
Hub Bolt Pattern  5 on 5.50" Cemtered
Weight Lbs 71 Lbs l (32 kgs)

Fits : Like Bush Hog, Land Pride, Kubota, Rhino, King Kutter, Woods, Hardee, Mahindra and many other, Not for Highway use (Available in all kind of Sizes and Colors)

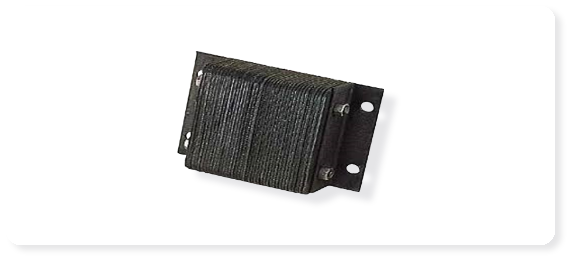

Laminated Wheel Chock 8" x 8" x 8"

Length 8"
Hight 8"
Thickness 8"
Rod 3/4"
Steel Plate  1/4"
Paint  Black
Weight: 14 lbs (6.40 Kgs)



Part # STI-5 x 8

15" Laminated Tail Wheel 5 x 8 x 15" - 4 Bolt Pattern

Size 15" ± ¼" (381mm  ± 6mm)
Width 5" ± ¼" (127mm  ± 6)
Center Hub Hole  3.55" (90mm)
Hub Bolt Pattern  4 on 5"
Weight Lbs 24 Lbs (10 kgs)

Fits : Like Bush Hog, Woods, Land Pride, Kubota, Rhino, Mahindra, King Kutter, Hardee and others. Flat/Flat Free -Not for Highway use (Available in all kind of Sizes and Colors)


Part # STI-6 x 94

21" Laminated Tail Wheel 6 x 9 x 21" - 4 Bolt Pattern

Size 21"± ¼" (533mm±6mm)
Width 5.50"±¼" (140mm ± 6mm)
Center Hub Hole  3.50"
Hub Bolt Pattern  4 on 5" Cemtered
Weight Lbs 71 Lbs l (32 kgs)

Fits : Majors brands line Land Pride, Woods, John Deere, fits most Batwing Cutter with a 4 bolts mounting pattern Flat/Flat Free -Not for Highway use (Available in all kind of Sizes and Colors)


Laminated Wheel Chock 8" x 8" x 8"

Length 8"
Hight 8"
Thickness 8"
Rod 3/4"
Steel Plate  1/4"
Paint  Black
Weight: 14 lbs (6.40 Kgs)
